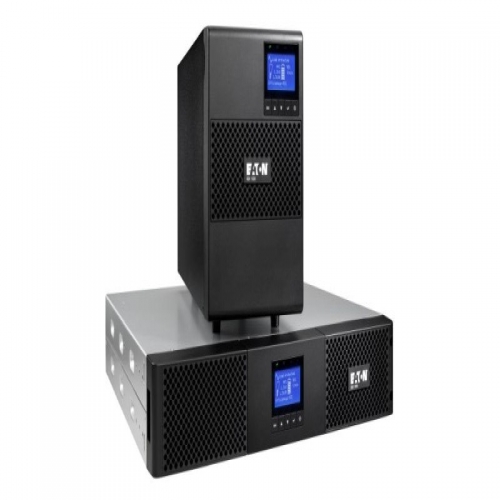

EATON 9SX UPS


Online double conversion UPS
Successor of Eaton 9130 UPS
Performance and Availability
• Double-conversion topology. The Eaton 9SX constantly monitors
power conditions and regulates voltage and frequency.
• The internal bypass allows service continuity in case of internal
fault, a maintenance bypass is also available (as option) for
easy replacement of the UPS without powering down critical
systems.
• With a 0.9 power factor the 9SX delivers 28% more power than
UPS in its class. It powers more servers than other UPSs with
equivalent VA ratings and lower power factors.
• Stronger, longer battery life: Eaton ABM® battery management
technology uses an innovative three-stage charging technique
that extends battery life by up to 50%. 9SX also provides
recommended replacement date for batteries.

Manageability
• The new graphical LCD provides clear information on the
UPS’s status and measurements on a single screen. Enhanced
configuration capabilities are also available.
• The 9SX can meter energy consumption. kWh values can
be monitored using the LCD or Eaton’s Intelligent Power®
Software.
• Load segment control enables prioritised shutdowns of
nonessential equipment to maximise battery runtime for
critical devices.
• 9SX offers Serial, USB connectivity, plus an extra slot for an
optional communication card. Eaton’s Intelligent Power®
Software seamlessly integrates with leading virtualisation
environments and cloud orchestrations tools.

Flexibility
• One platform, two factors, dozens of choices. Up to 3000 VA
of UPS power is packed into only 2U of rack space. The tower
option is about the size of a modern, compact PC.
• More runtime can be added with up to 4 external hot-swappable
battery modules, able to run systems for hours if necessary. The
additional battery modules are automatically recognized by the
UPS.



Click below to download brochure

Eaton_9SX_700-3000VA.pdf
